Ultraprobe® 15,000 Touch

Experience the Ultraprobe® 15,000 Touch – Years Ahead of Its Time. Miles Ahead of the Competition.

What would the future be like if equipment was tested so effectively, so safely, so intuitively that catastrophic failure and energy waste became terms of the past?

For the past three decades, the manufacturers at UE Systems have been working on a super detection system that combines state-of-the-art technology with each and every known plant inspection requirement (as indicated by our clients) – in order to create an entire ultrasonic condition monitoring laboratory – to fit in the palm of your hand.

  • Touch Screen Technology
  • Plan/Review Routes, Images and Sounds On-board
  • Multiple Data Screens: dB/Temperature/ Spectral Analysis
  • Take Temperature with Infrared Thermometer
  • Adjust Emissivity

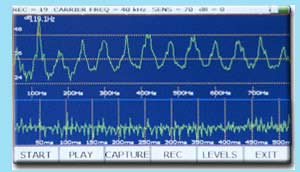

  • Analyze Conditions with On-board Spectral Analyzer

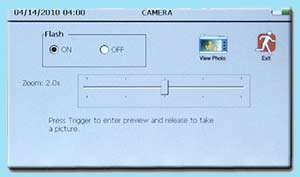

  • Photograph Test Points with On-board Camera
  • Pinpoint Locations with Laser Pointer
  • Review Alarm Groups & Generate Reports
  • Store Data, Sounds, and Images
  • Review Historical Record Data
  • Use for ALL Plant Applications

Hardware

Ultraprobe® 15,000 Touch Hardware

Place all of Your Inspection Needs in the Palm of Your Hand!

If you have not yet experienced UE Systems’ pistol-grip digital ultrasonic detection instruments, you haven’t experienced truly turnkey route inspection. Anything is possible with the Ultraprobe® 15,000 Touch inspection instrument. Its ergonomically enhanced hardware makes this Ultraprobe easy to control, simple to use, and extremely accurate. Powered by the most advanced software package ever developed for portable PdM/Energy and leak inspection this remarkable system includes all your analytical tools for data, images, temperature and Spectral sound analysis. It is truly an “ultrasound inspection laboratory” that fits in the palm of your hand.

FRONT VIEW

Infrared Thermometer
Laser Pointer
Camera with Flash

SIDE VIEW

Instrument Trigger
Battery Pack / On/Off Button
Test Module Receptacle

BACK VIEW

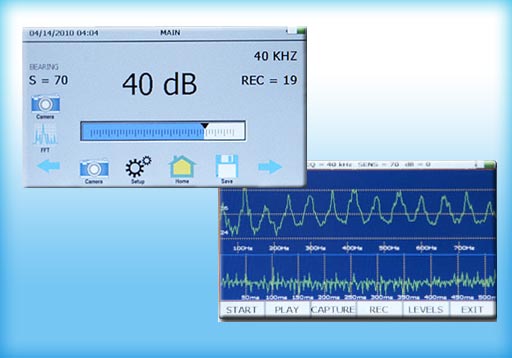

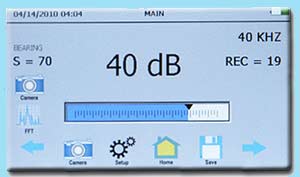

Ultraprobe® 15,000 Touch Screen

Truly an ultrasonic condition monitoring laboratory that fits in the palm of your hand, the Ultraprobe® 15,000 Touch is so sophisticated and so advanced, it’s easy to use.

The center piece of the Ultraprobe 15,000 is touch screen technology. A true “full-service inspection system”, you will be amazed at how many different ways you can use it, as well as how many different applications it can be used for. Touch an icon and the world of ultrasonic inspection opens for you.


Complete Kit

Ultraprobe® 15,000 Touch Complete Detection Kit

The Ultraprobe 15,000 Kit comes loaded with all the accessories you’ll need for effective condition monitoring.

The kit includes:

  • The Ultraprobe housing with camera
  • IR thermometer
  • Laser pointer
  • On-board Spectral Analyzer
  • Sound recording
  • On-board data logging
  • Touch Screen technology
  • Specialized displays
  • SD Card and Compact Flash Card Reader

Plus

  • The patented UE Trisonic Scanning Module
  • A Stethoscope (Contact) Module
  • Stethoscope Extension Rods
  • Hard hat style acoustic isolating headphones
  • A Long Range Module
  • A RAS-MT Remote Access Sensor with Magnetic Mount Transducer
  • A spare Lithium Ion Rechargeable battery
  • Recharging Pod
  • Ultratrend DMS Data Management Software
  • UE Spectralyzer Spectral Analysis Software
  • Battery recharger
  • Instructions
  • A Zero-Halliburton Carrying Case

Technical Specs

Ultraprobe® 15,000 Touch technical features and benefits:

Construction: Hand-held pistol type made with coated aluminum and ABS plastic
Circuitry: Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion
Frequency Range: 20 kHz to 100 kHz (tunable in 1 kHz increments)
Response Time:
Display: QVGA Touch Screen – IR, Laser Pointer, Camera, Spectrum Analyzer
Sound Recording: WAV File Format
IR Temperature: -20°C to 500°C ( -4°F to 932°F )
Camera: 2.0 Mega Pixel
Laser Pointer: All but Europe:
OutputEurope Only:
Output
Memory: 400 storage locations
Battery: Lithium ION Rechargeable
Operating Temperature: 32° F to 122° F (0° C to 50° C)
Output(s): Calibrated heterodyned output, decibel (dB) frequency, SD card
Probes: Trisonic Scanning Module, Stethoscope Module, Long Range Module and RAS-MT
Headset: Deluxe noise attenuating headphones for hard hat use
Indicators: dB, Frequency, Battery Status, and 16 Segment Bar Graph
Sensitivity: Detects .005″ (.127 mm) diameter leak @ 5 psi (.34 bar) at a distance of 50 feet (15.24m)
Threshold*: 1 x 10-2 std. cc/sec to 1 x 10-3 std. cc/sec
Dimensions: Complete kit in Zero Halliburton aluminum carrying case 21.5″ x 18.5″ x 8″ (55 x 47 x 20 cm)
Weight: Pistol Unit: 2.35 lbs. (1.1 kg)
Complete carrying case: 19 lbs. (8.6 kg)
Warranty: 1 year parts/labor standard, 5 years with returned completed warranty registration card
Display Modes: dB (main), IR, ABCD, Spectrum and Application Specific,
Spectrum Analyzer (modes): Spectrum, Time Series & Dual Specific
