Level
The tool for leveling or machine parts during installation!

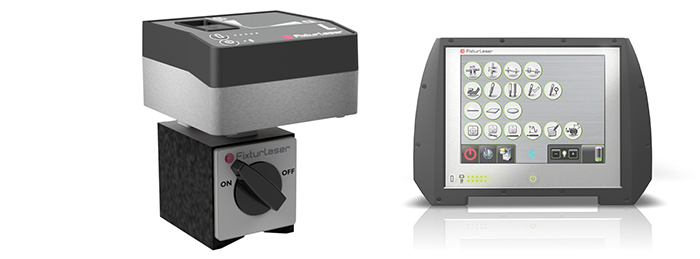

Level is a battery-powered measuring sensor that connects wirelessly via Bluetooth to the NXA display unit.

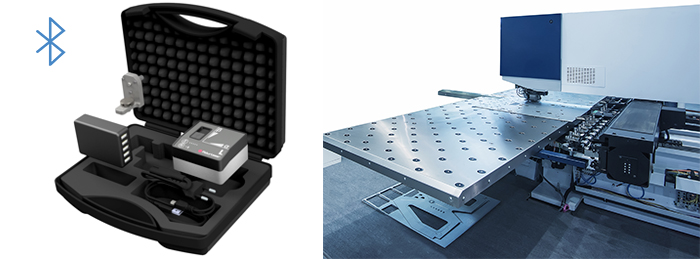

The measuring sensor is used for levelling machines or machine parts during installation and gives accurate measurement results.
The measuring sensor measures the angular deviations from the surface in two axes using a wide measurement range (± 50 mm/m), high accuracy and with a resolution down to 0.01 mm/m.
Measuring sensors can be mounted using magnetic feet or directly on the table, and provide maximum flexibility.
Level features
- Dual-axis
- Large measurement range (± 50 mm/m)
- Wireless communication
- Built-in rechargeable batteries
- IP65 protection class
- Easy mounting
- Operating time of up to 12 hours

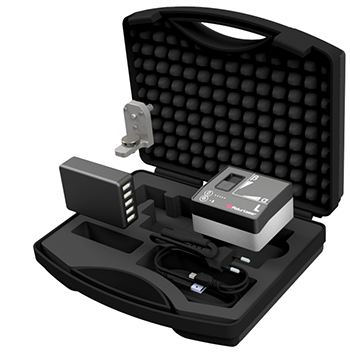

What’s in the case?
Level – Package with case
- Measurement sensor
- Mounting kit
- Ext power cable, US, 2 m
- Ext power cable, EUR, 0,5m
- USB-cable A-mini B, 0,5 m, black
- Power supply, 4 USB-ports, 5 VDC
| Housing Material: | Anodized Aluminium and ABS plastic |
| Operating Temp: | 10 to 40°C ( 50 to 104°F) |
| Storage Temp: | -20 to 70°C ( -4 to 158°F) |
| Relative humidity: | 10 – 90% |
| Weight: | 386 g (13.6oz) |
| Dimensions: | 77mm x 84mm x 45mm(3.0 in x 3.3 in x 1.8 in) |
| Environmental protection: | IP 65 (Dust-tight and protected against water jets) |
| Inclinometer: | High-performance MEMS inclinometers |
| Calibrated measuring range: | ±50mm/m |
| Displayed resolution: | 0.01 mm/m |
| Inclinometer accuracy: | 1% ± 0.01mm/m |
| Temperature error: | 0.015 mm/m/°C |
| Stabilization time: | 18 s |
| Communication range: | 10 m (33 ft) |
| Warming up time: | 30 min |
| Operating time: | 12 hours continuously |
| Wireless communication: | Class I Bluetooth transceiver with multi-drop capability.BLE Bluetooth Low Energy (BT 4.0) and Classic Bluetooth |
| Power supply: | High-performance Li-Ion battery or external power. |
| Battery charging temp: | 0 to 40°C ( 32 to 104°F |
| Battery Charging time (system off, room temperature): | 8 h |
| Battery capacity | 10.4 Wh |
| LED indicators: | Unit state, battery status, and Bluetooth status. |
| Peripherals – User accessible: | 1 USB Mini port;Charging: 5V, 0,5A |
